Weighing filling machine series
Research and development of liquid packaging equipment and water treatment equipment

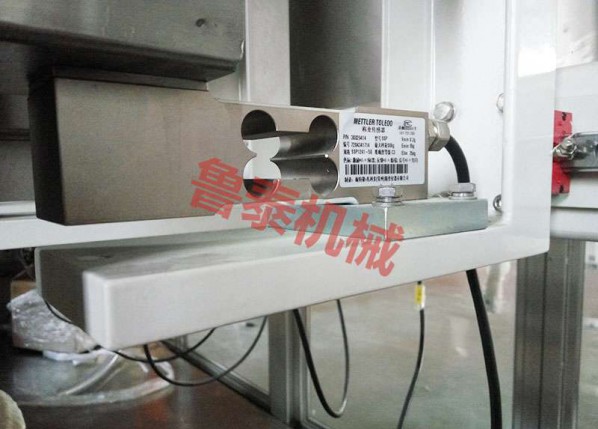

Toledo weighing sensor

Toledo weighing sensor

Product classification:Weighing filling machine series
Browse:   Date:2017-07-25

Return

Product description

The advantage of the weighing filling machine lies in that the metering mode is the weight metering, so that the filling precision will not be affected by the change of temperature, volume and bubble. The filling precision is decided by the deviation size of measurement scale and perfection extend of control software.

The weighing filling machine of Lutai Machinery adopts the world's most advanced and stable Mettler Toledo master scale from Switzerland, but Lutai Machinery overcomes the problem of stiff Toledo system and poor portability in the software development, so that the whole set of weighing system more facilitates the automatic and manless production, and the operating system basically becomes "one-key fool style". The measured error of the full-automatic and semi-automatic filling equipment of Lutai Machinery is far less than that of the international and domestic standard weighing series filling machine, and it is one of competitive products of which Lutai Machinery is proud.

Classification of products:

I. 0.5KG-5KG-10KG inner packing filling machine

Number of filling heads: 2-12 (heads)

Filling efficiency: 150 barrels / head / hour (5KG)

Filling error: <±55g (KG)

II. 10KG-30KG-50KG medium packing weighing filling machine

Number of filling heads: 2-12 (heads)

Filling efficiency: 100 barrels / head / hour (20KG)

Filling error: <±10g (20KG)

III. 50KG-300KG-1000KG large packing weighing filling machine

Number of filling heads: 1-6 (heads)

Filling efficiency: 50 barrels/head/hour (calculated by 200KG water aqua)

Filling error: <±20g (180KG)

Available industry: Weighing filling machine, explosion-proof filling machine, cooking oil filling machine, lubricating oil filling machine, beverage filling machine, chemical filling machine, automotive urea filling machine, anti-freezing solution filling machine, vat filling machine, tierce filling machine, coating filling machine, paint filling machine, alcohol filling machine, enzyme filling machine
