The advantages of the laser ink-jet printing machine mainly cover the following several aspects:
1. It can reduce the production cost and consumables, and improve the production efficiency.
2. With significant anti-counterfeit effect, the laser ink-jet printing technology can inhibit the counterfeit product identification effectively.

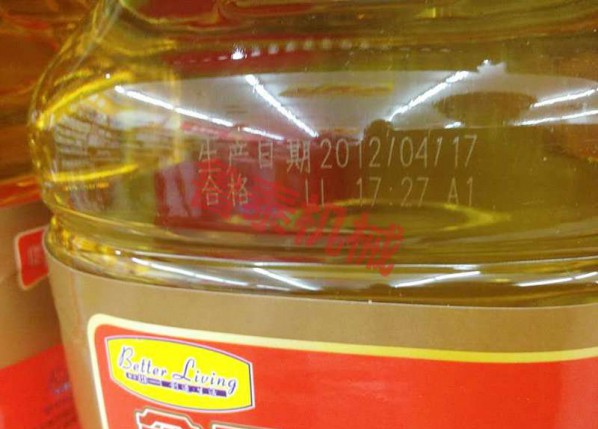

3. It is beneficial to the product tracking record, and the laser ink-jet printing machine can print the batch number, production date and shift of the product. Each product can obtain good tracking performance.
4. With the increase of additional value, the product seems to be more high-end. The product brand popularity can be improved.
5. The equipment is reliable, the laser marking (coding) machine has the mature industrial design and stable and reliable performance and can keep continuous work for 24 hours, and the maintenance-free time of the laser is as long as more than 20000 hours. With the wide range of temperature adaptation (5℃-45℃), it is widely applied to the production and packaging field of the various industries.
6. It is environmentally friendly and safe. The laser marking machine will not produce any chemical substances which are harmful to the human body and environment. Conform to GB7247-87; GB10320-88 standard It is the environmentally friendly high-tech product.
7. The laser ink-jet printing machine can print the mass data within the minimum range, the laser can be marked on the product material with the thin beam, the printing resolution is very high, and the control is accurate, thus giving the clear and perfect interpretation of jet printing contents. It has the strong market competitiveness, is environmentally friendly and safe, has no corrosivity, and isolates the chemical pollution thoroughly. It is also an intimate protection for the operator, guaranteeing the clean and tidy production site, and reducing the later input and noise pollution.
Advantages
Editing
In recent more than ten years, human understands of the environmental protection and effective utilization of resources reaches an unprecedented height.
The maximum elimination of the lagging equipment production process causing the environmental pollution and resource waste has become the consensus of the developed countries and most developing countries including China.
I. With fast speed, high precision, excellent quality and small deformation, it greatly improves the product appearance image and brand effect;
II. With the extensive application range, it can carry out the carving, identification and ink-jet printing of any materials.
III. It doesn't need the mould opening, uses the computer for editing, has the convenient deformation and is not limited by the yield, greatly shortening the new product development cycle and reducing the development cost;
IV. With the simple use, any employee can learn the normal operation process of the laser machine equipment within a short time.
V. It is environmental friendly and will not generate any products damaging the environment, creating the profit value on the environmentally friendly basis;
VI. It can mark the surface with various materials and shapes, and will not produce the unstable operation.
In conclusion, the laser marking machine fills in gaps in the online laser marking equipment in China, narrows the gap in this field between China and developed countries, and opens up the new application field of the laser technology in the continuous identification and marking equipment in the flow production line of China. Meanwhile, with the superior quality and excellent cost performance, it will certainly occupy the domestic market within a short time, replace the imported products and then enter the international market. The product is of the great social and economic significance.
DY-JG10/30 online laser marking machine
Power: 10W Wavelength 10.64nm
Power demand: 220V; AC 50/60Hz
Weight: 13kg
User interface: Touch screen
Cooling method: Air cooling
locate mode: Red light two-point focus
Marking range: 90mmX90mm 110mmX110mm
Boundary dimension: 680mm×145mm×145mm
System composition: Laser, scanning galvanometer, beam expander, field lens, switch power supply, control system, built-in touch screen
Laser device: Metal RF CO2 laser tube (service life 20000 hours)
Scanning galvanometer: 10mm high-speed 2-D scanning galvanometer
Beam expander: Three times
Lens specification: F45mm
Switching power supply: Taiwan Mingwei S350-27
Control system: SUNINE software of WINOOWs CE system
Touch screen: 7 cun
Marking contents: Chinese and English, number, serial number, sequence number, pattern, bar code, etc.
Environmental conditions: External temperature 1℃-40℃ (preheating if below zero) Humidity ≤95% non-condensing: Vibration-free
Main Product Configuration List (it may change due to the product upgrading)
Serial number, subsystem name, component name, model, quantity, place of origin, remark
1 Laser marking head, beam expander 1064-3 * 1 France
High-speed scanning galvanometer, SUNINE-10 * 2, Lutai
Galvanometer driver card, SUNINE-10 * 2
Scanning mirror NJ1064-12XY * 2
Field lens NJ-110 * 1, made in China
2 Laser, laser, 10W * 1 set, Synrad
3 Red light positioning system * 1 set, Lutai
4 Computer and software control system 7-cun touch screen * 1, Lutai
Marking software system, CE2.1 * 1 set, Lutai
5 Power supply, power switch, S350-27W *1, Taiwan
6 Bracket * 1, Lutai, optional component
7 Optical path converter * 1, Lutai, optional component
8 Handheld controller * 1, Lutai, optional component
9 Purification machine, 200W * 1, Lutai, optional component
â—† Executed quality standards:
GB 7247-87 Radiation Safety of Laser Products, Equipment Classification Need and User Guide
GB10320-88 Electrical Safety of Laser Equipment and Facilities
ISO 9000-3 International Software Standard
GB/T12123-89 Designing Procedure for Selling Packages
IEC 536 Classification of Electrical and Electronic Equipment with Regard To Protection against Electric Shock
