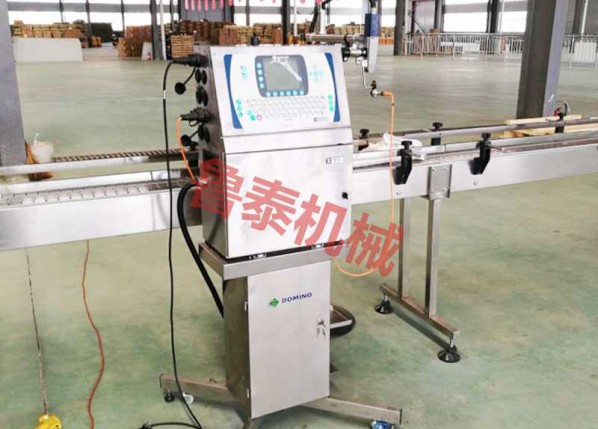

The world's top marking device A120 continuous ink-jet printing machine is very applicable to the simultaneous printing of 3 rows of content. The case is made of the stainless steel material, meets IP55 standard and can be used under the severe environment. With the stable performance, it can meet the general requirements of the ink-jet printing of more industries, and the universal identification solution is provided.
Technical parameter
Control panel
Touch-type coating button
Weight
23kg
Chassis
304 Stainless steel
Case size
Number of print lines
1-3 line
Maximum speed
271m/ min
Types of character
General information and various graphics
Keyboard
Standard
Product detector
NPN/PNP
Synchronizer
NPN/PNP
Protection grade
IP55
Temperature range
5-45℃
Humidity
10-90%
Power supply
96-256V,47-63HZ
Power
56 W
Length of printing head guide tube
3m
Orifice or Gas Cup Size
60μm
FLEXIBLE CAONDUITS
Standard
Fast arrival
Standard
Nozzle heating
Standard
Viscosity control
Automatic
Nozzle cleaning
Automatic
Solvent and ink box capacity
825ml
Ink tank capacity
1200ml
